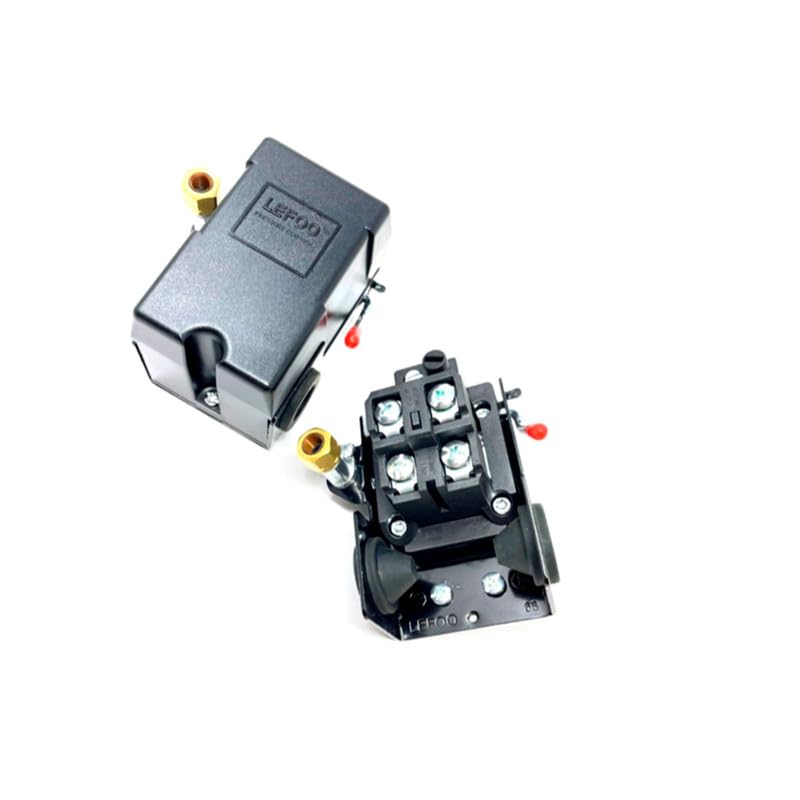

69MC8Z140175, 69MB9LY Replacement Pressure Switch. Single Port. 145-175 PSI. Push Button. Hinge Lever. Manual. Black
5.0 (121 items)
Limited Time SaleUS$32.33 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222670830 | Release Date | 2026/05/04 | List Price | US$21.56 | Model Number | 222670830 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
69MC8Z140175 REPLACEMENT PRESSURE SWITCH. SINGLE PORT. 145 - 175 PSI FURNAS REPLACEMENT PRESSURE SWITCH 145 PSI ON & 175 PSI OFF SINGLE PORT UNLOADER VALVE ON/OFF METAL LEVER This switch comes on many two stage air compressors. Please review the specs to ensure proper fit. It is factory set at 140 PSI on and 175 PSI off and is adjustable. Rated at 20 AMP, 120 volt. This is UR and CSA approved.PAC#: 69MB9LY / LF10-H1 The bottom side has a single 1/4" FPT port. One side has a pressure release unloader valve for 1/4" compression tube. The other side has a metal on/off lever.
| UPC | 363075646598 |
|---|---|
| Color | Black |
| Wattage | 2400 watts |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Switch Type | Pressure Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | Lawn Repl Parts N |
| Actuator Type | Hinge Lever |
| Material Type | Metal |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Operation Mode | manual |
| Contact Material | Metal |
| Operating Voltage | 120 Volts |
| Specification Met | CSA |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
