C20P Digital USB Oscilloscope 2 Channel 50MHz 200MSa/s

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

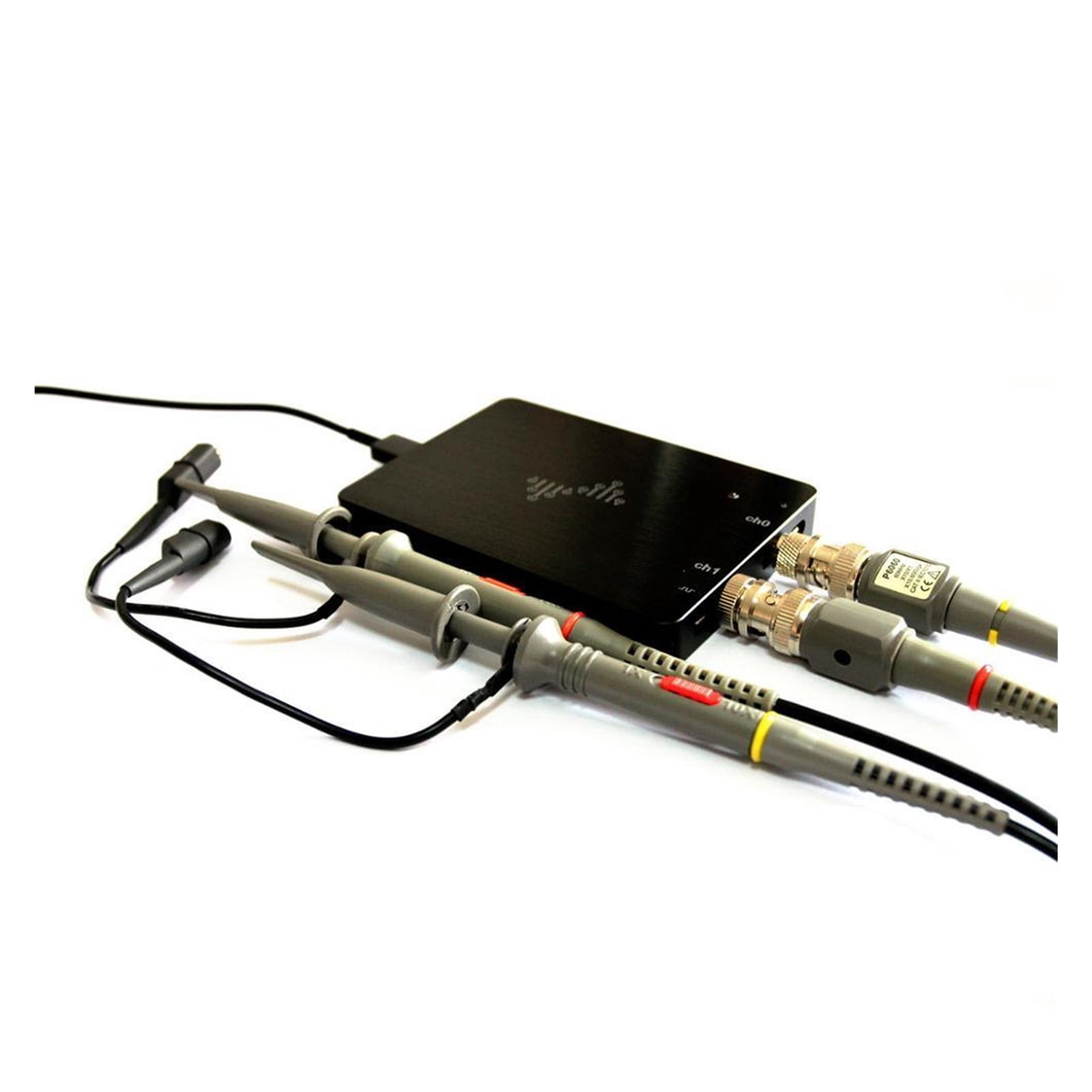

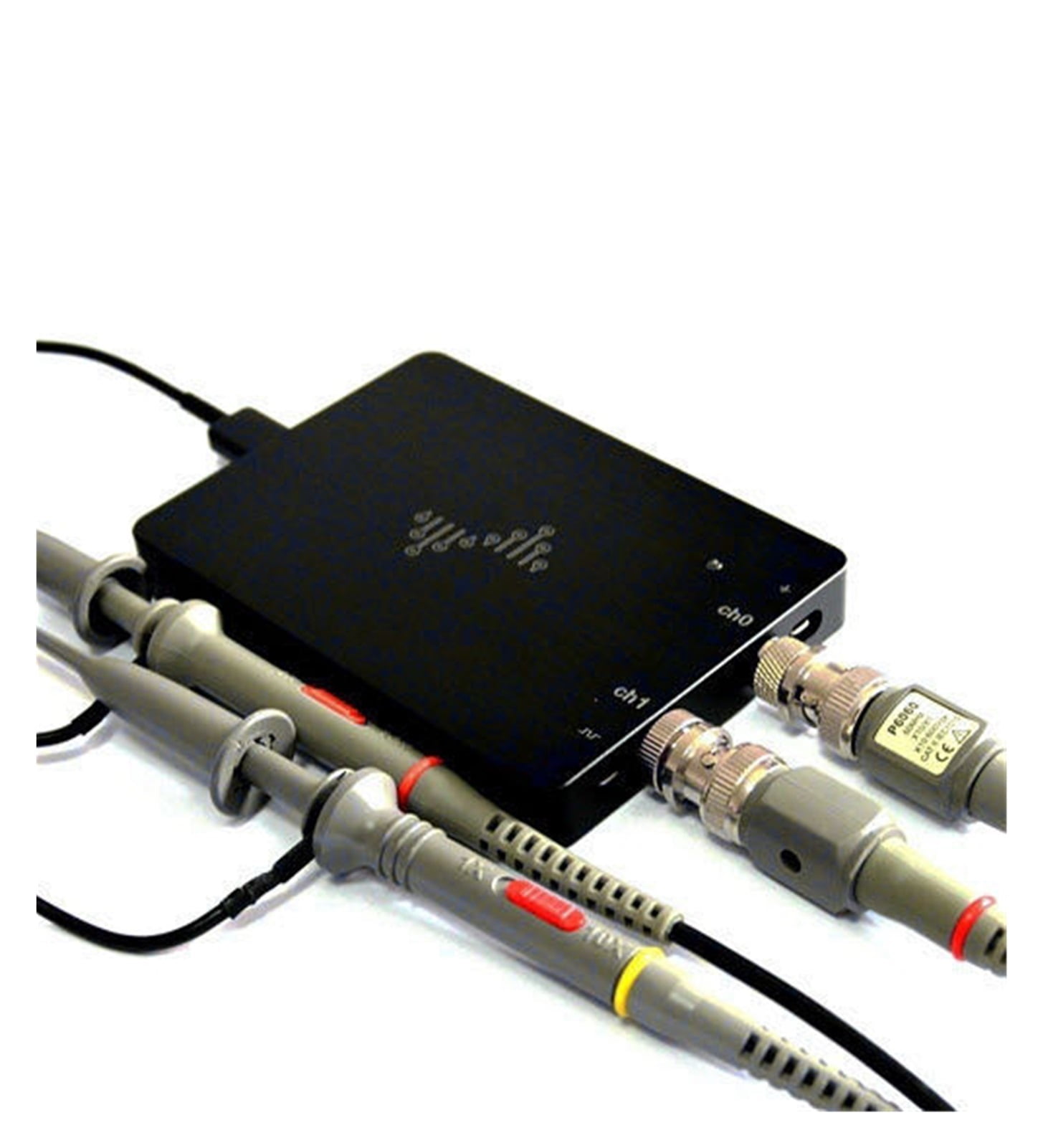

• This is an USB-based digital oscilloscope, which has a portable size (103x74x13mm), but powerful performance (up to 200MHz sample rate). With the easy-to-use and cross platform software, you can use your favorite computer to debug and analysis your circuits, observe the analog wave and its frequency spectrum at anywhere and anytime.
• Key Features
• 2 analog channels
• 50MHz bandwidth
• Up to 200MSa/s sample rate
• Ultra-portable size

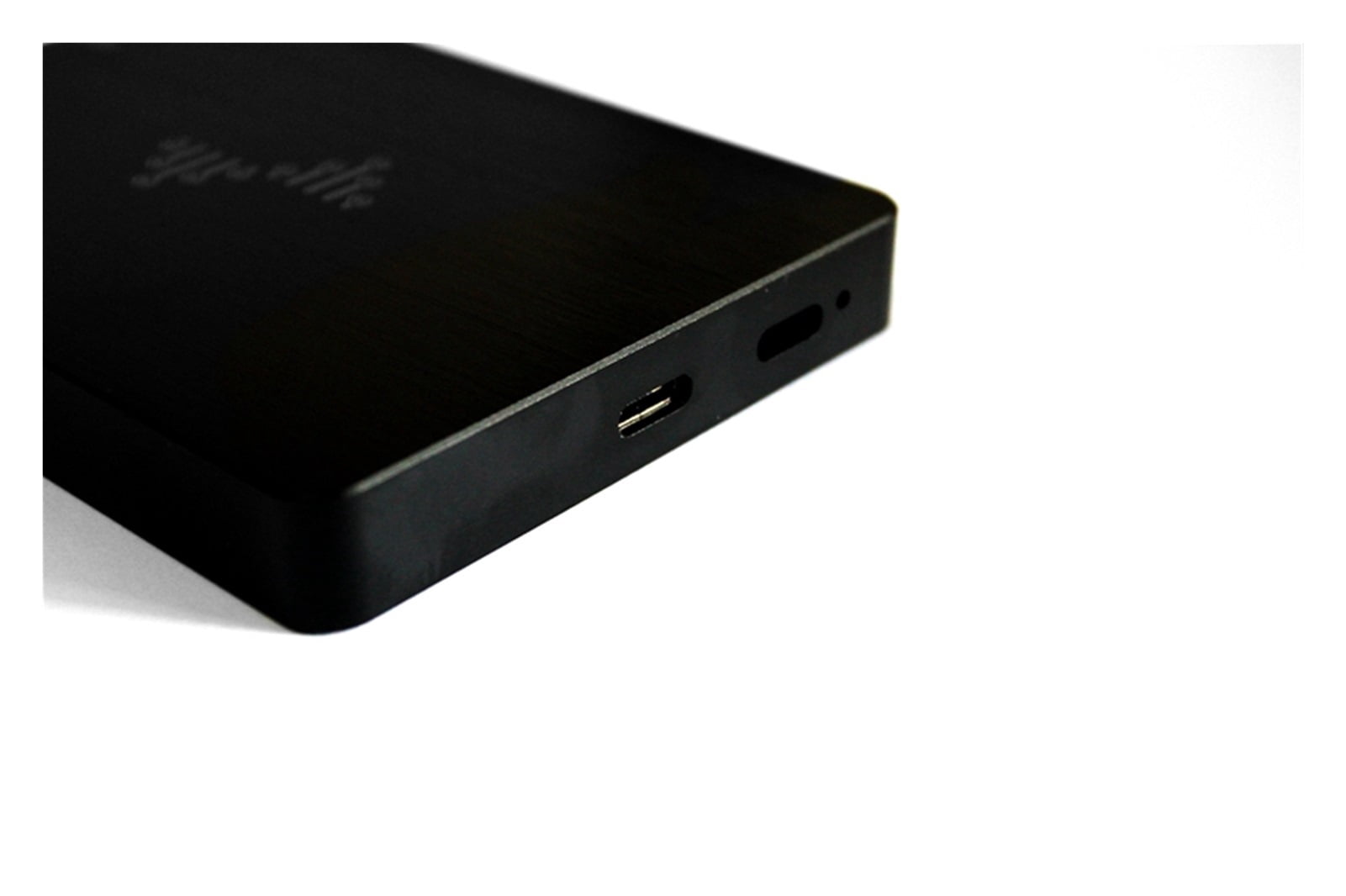

• Unibody aluminum cas
• USB interface (USB 2.0 device port)

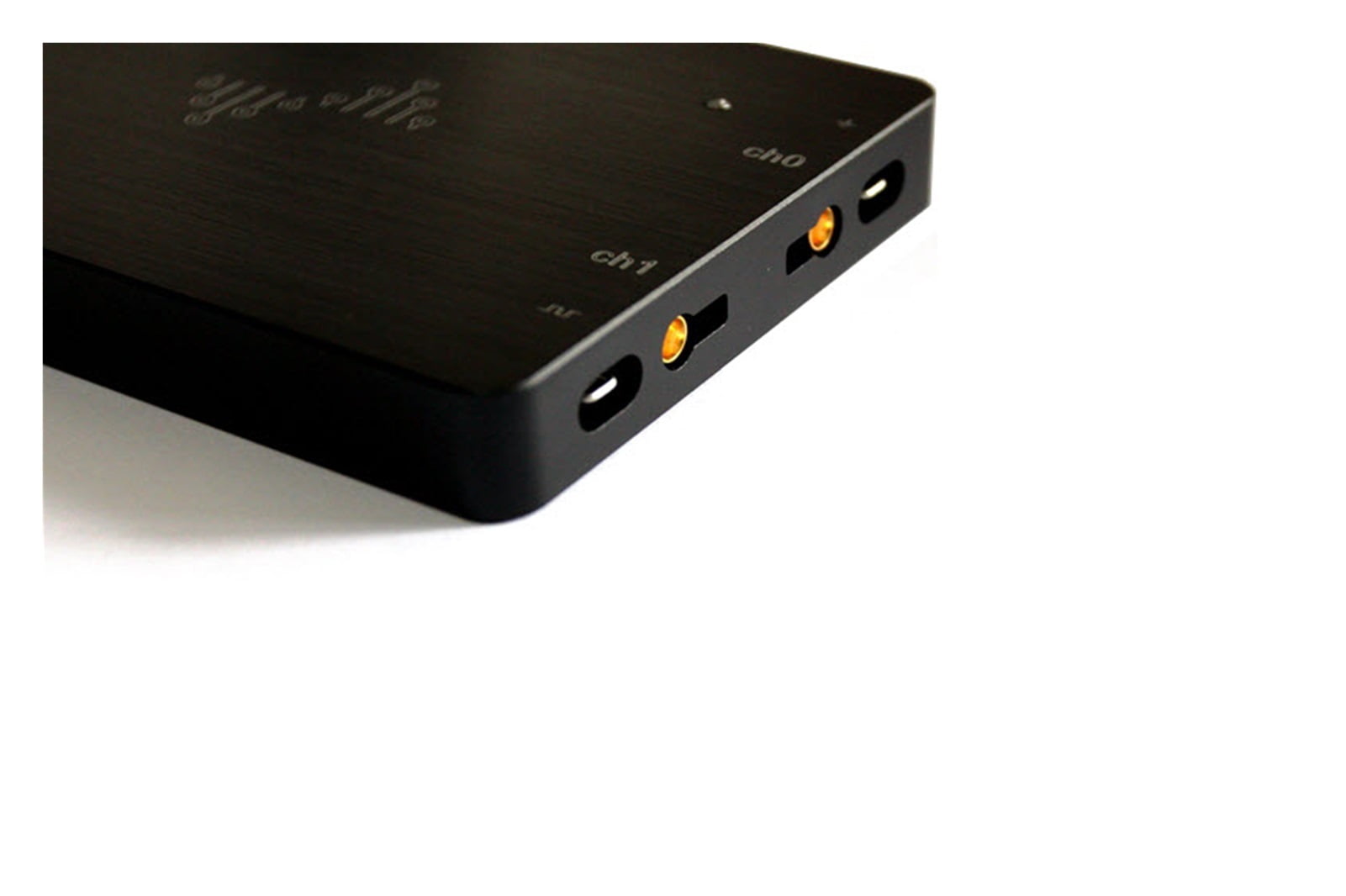

• Standard BNC connectors
• Power Source
• Power source voltage: 5VDC±5%
• Power consumption: 2.5 W maximu
• Technical Specifications
• Vertical system U2P20 C20
• Bandwidth:
• 50MHz 50MHz
• Input coupling:
• DC or AC DC or AC
• Input impedance:
• 1M // ~15pF 1M // ~15pF
• Input sensitivity range:
• 10mV/Div to 2V/Div 10mV/Div to 2V/Div
• Vertical resolution:
• 8bits 8bit
• Maximum input voltage:
• peaks ±100V peaks ±100V
• DC gain accuracy:
• ±6% ±6%
• Vertical position range:
• ±5 divisions ±5 divisions
• Time base range:
• 10ns/Div to 10s/Div 10ns/Div to 100ms/Div
• Maximum duration of time
• captured at highest sample rate (all channels):
• 10ms (real-time capture) 100us (real-time capture)
• 100ms (single capture) 100us (single capture)
• Record Length (real-time capture):
• 1M (2 channels enabled) 10K (2 channels enabled)
• 2M (1 channel enabled) 20K(1 channel enabled)
• Record Length (single capture):
• 16M (2 channels enabled) 16K(2 channels enabled)
• 32M (1 channel enabled) 32K (2 channels enabled)
• Trigger mode:
• Normal (ch0, ch1, ch0 & ch1 ch0 ch1
• Trigger position range
• 0 99% of record length
• Trigger holdoff range:
• 1 ~ 10 s
• Trigger types:
• Edge (rising or falling)
• Sensitivity:
• 0 ~ 0.625 vertical division
• Trigger level ranges:
• ±4.4 vertical division from center screen
• Cursors:
• Horizontal Width/Frequency/Period/Duty
• Vertical Amplitude
• Automated measurements:
• Frequency / Period
• Spectrum magnitude
• Length: 1K ~ 16K Length: 1K ~ 8K
• Vertical scale: Linear RMS or DBV RMS

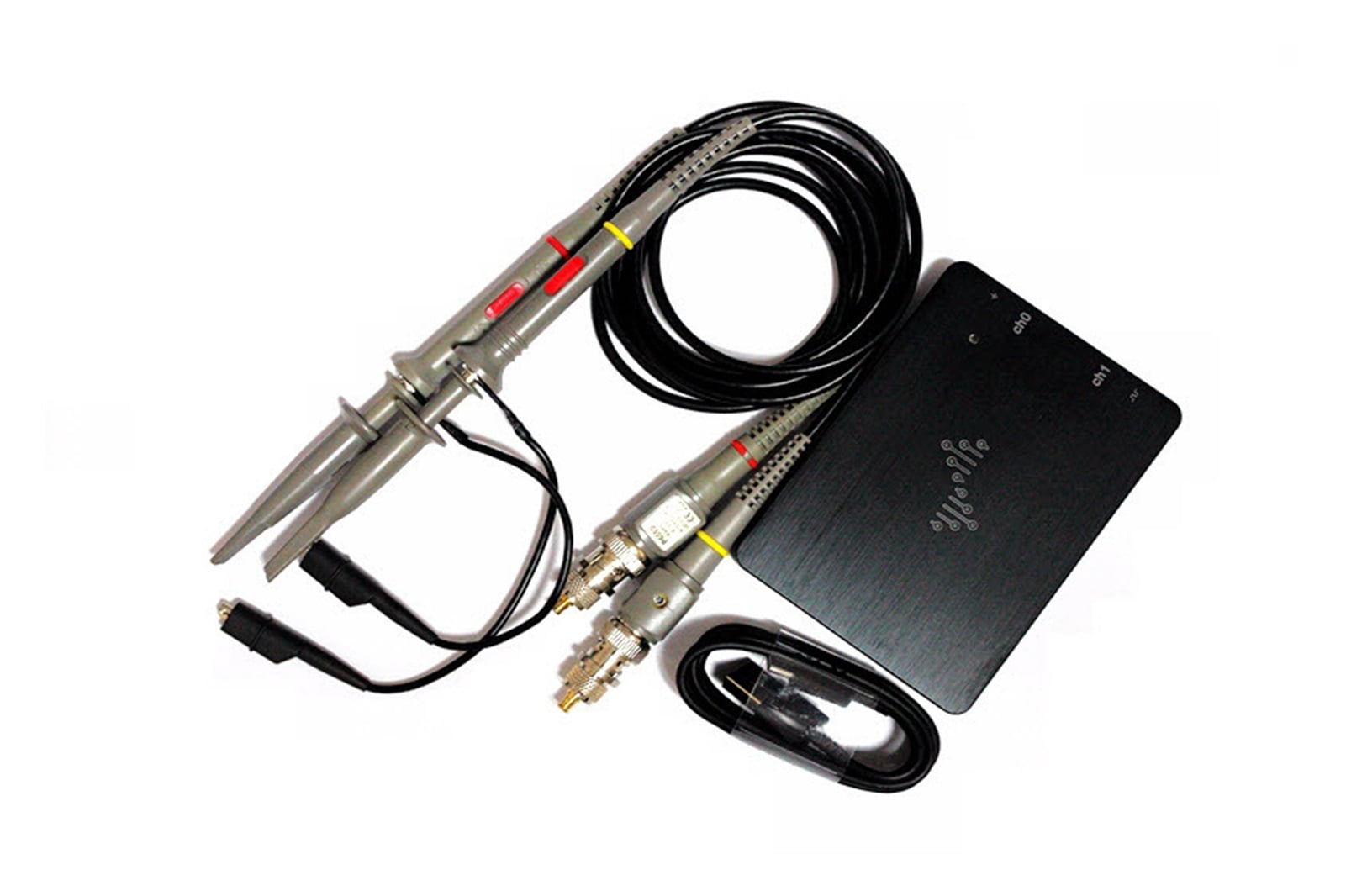

• What's in the Box
• 1* C20 / U2P20
• x1 USB cable(1.0M length, A to micro-B)

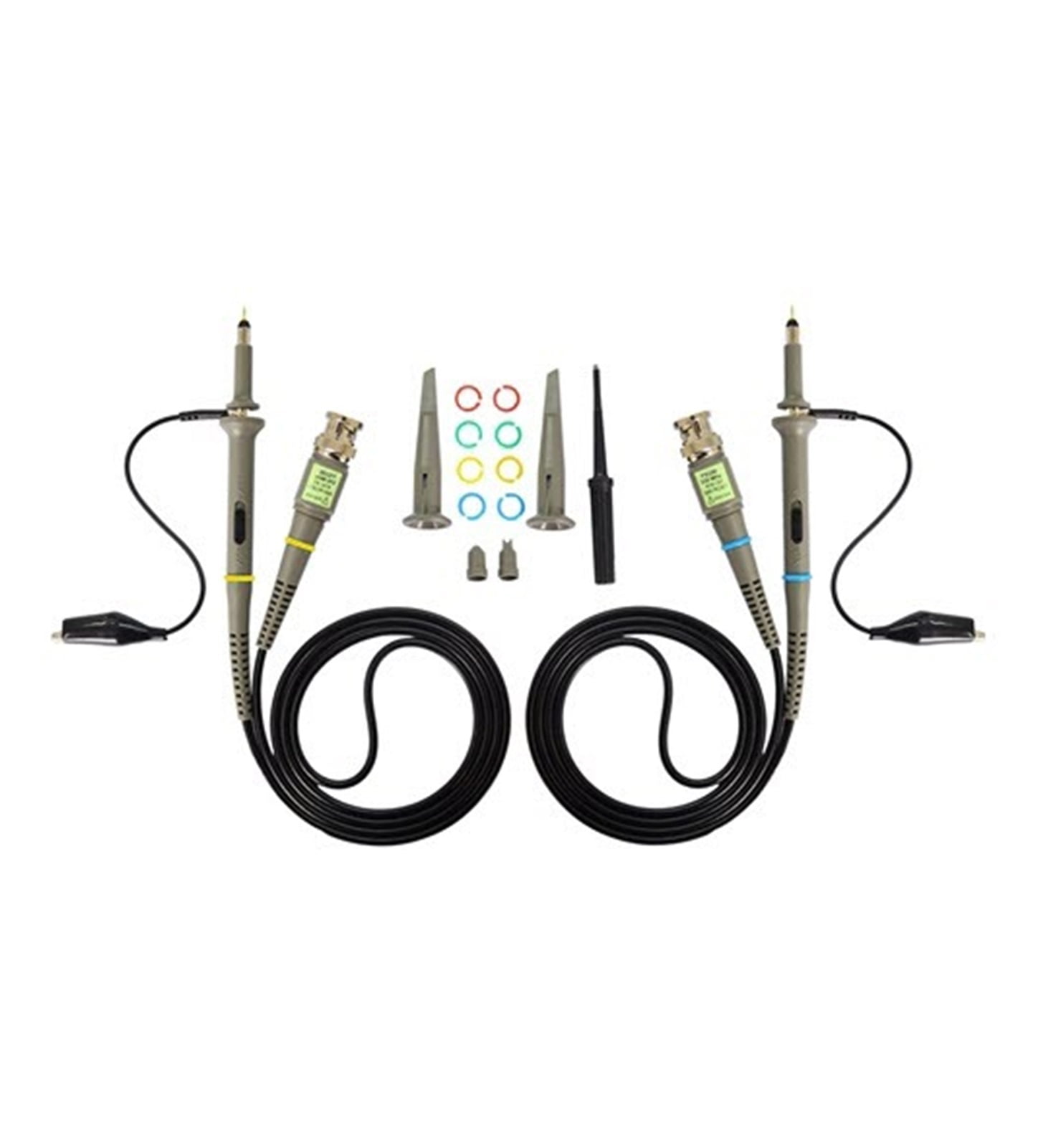

• x2 P6100 probe
