Vikye Charging Station Tester, Includes Voltage Tester and Type 2 Testing Cable, Suitable for Electricians Testing Electric Vehicle Infrastructure

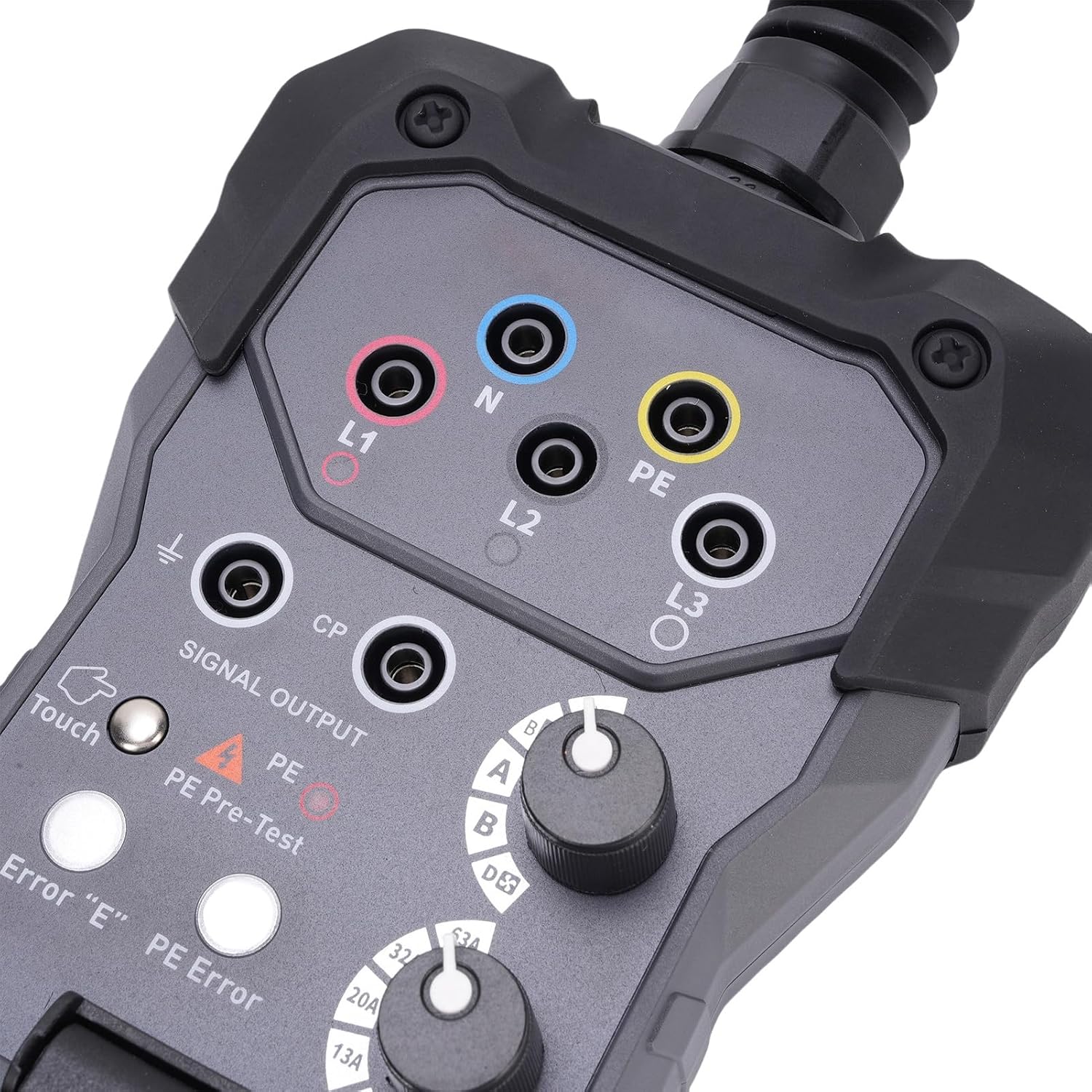

1. EVSE Tester Kit: Simulate the presence of electric vehicles and equipped with European standard Type 2 plug for easy testing of European standard AC electric vehicle charging stations. 2. Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters. 3. Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output. 4. LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked. 5. Rotating Switches: PP switch simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP switch helps simulate common vehicle states - A, B, C, D. Spec: Item Type: Electric Vehicle Charging Station Test Adapter Frequency: 50/60Hz Current: 10A Type 2 Testing Cable: AC Charging Mode 3, suitable for IEC62196-2 Type 2 socket or fixed cable with vehicle connector (Type 2, 7 pole, three-phase) Measurement Category: IEC/EN 61851-1/IEC/HD, 60364-7-722, 600VCATII Protection Grade: IP54 PackageList: 1 * Tester 1 * EVA Box/Cover 1 * User Manual

• [EUROPEAN STANDARD PLUG] Equipped with Type 2 plug for easy testing of European AC electric vehicle charging stations.
• [COMMUNICATION SIMULATION] Simulate charging station communication with installation testers or multimeters.
• [UNIVERSAL SOCKET] Compatible with testers, multimeters, and oscilloscopes for load voltage and CP signal checking.
• [PHASE INDICATION] LED lights indicate phase presence, allowing individual phase inspection.
• [SWITCH SIMULATION] PP switch for different charging cables and CP switch for various vehicle states to ensure accurate testing.
